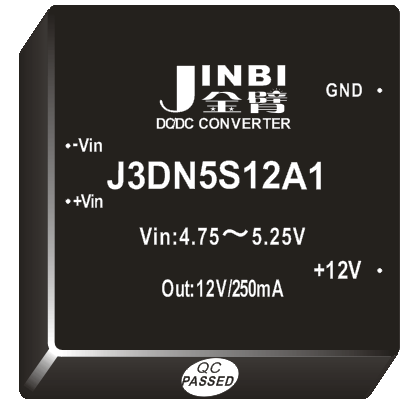

J1-3DN_100100A1
J1-3DN_100100A1
- 产品概述
- 规格参数
- 资料下载
⊙定电压输入,稳压输出Fixed input,Stabilivolt output
⊙转换效率Converter efficiency :60%
⊙开关频率Swiching frequency:50-100KHz
⊙无短路保护No short circuit protection
⊙输入与输出隔离Input-output isolate
⊙PCB板上直插式安装Board in-line type installs
⊙温度适应范围宽Wide temperature range
⊙六面金属屏蔽,超薄封装Six sides metal shielding,ultra-thin
⊙转换效率Converter efficiency :60%
⊙开关频率Swiching frequency:50-100KHz
⊙无短路保护No short circuit protection
⊙输入与输出隔离Input-output isolate
⊙PCB板上直插式安装Board in-line type installs
⊙温度适应范围宽Wide temperature range
⊙六面金属屏蔽,超薄封装Six sides metal shielding,ultra-thin

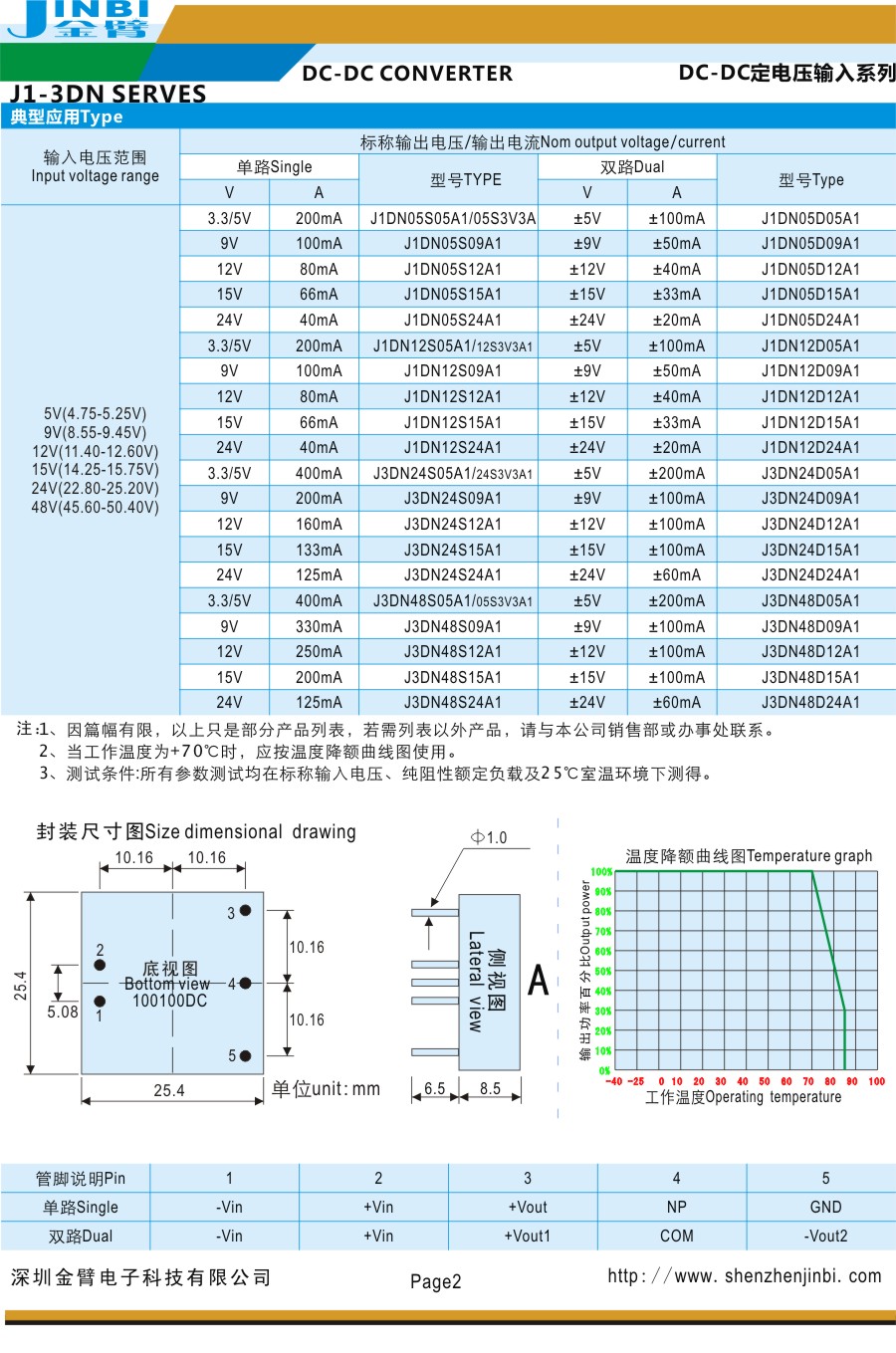

⊙封装尺寸Size dimensional： 25.4x25.4x8.5mm
