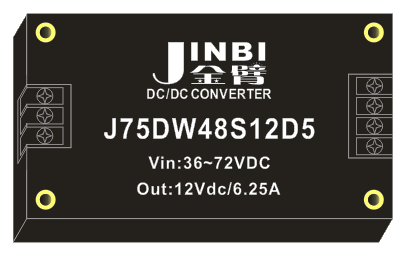

J50-75DW_457256D5
J50-75DW_457256D5
- 产品概述
- 规格参数
- 资料下载
⊙宽范围输入Wide input voltage range
⊙转换效率典型Typical efficiency :80%
⊙开关频率Swiching frequency:300KHz±30KHz
⊙过流、短路保护,自恢复Over current、short circuit protection
⊙输入与输出高隔离Input-output isolate
⊙输入和输出带接线端子Input and output With terminal
⊙温度适应范围宽Wide temperature range
⊙六面金属屏蔽Six sides metal shielding
⊙转换效率典型Typical efficiency :80%
⊙开关频率Swiching frequency:300KHz±30KHz
⊙过流、短路保护,自恢复Over current、short circuit protection
⊙输入与输出高隔离Input-output isolate
⊙输入和输出带接线端子Input and output With terminal
⊙温度适应范围宽Wide temperature range
⊙六面金属屏蔽Six sides metal shielding

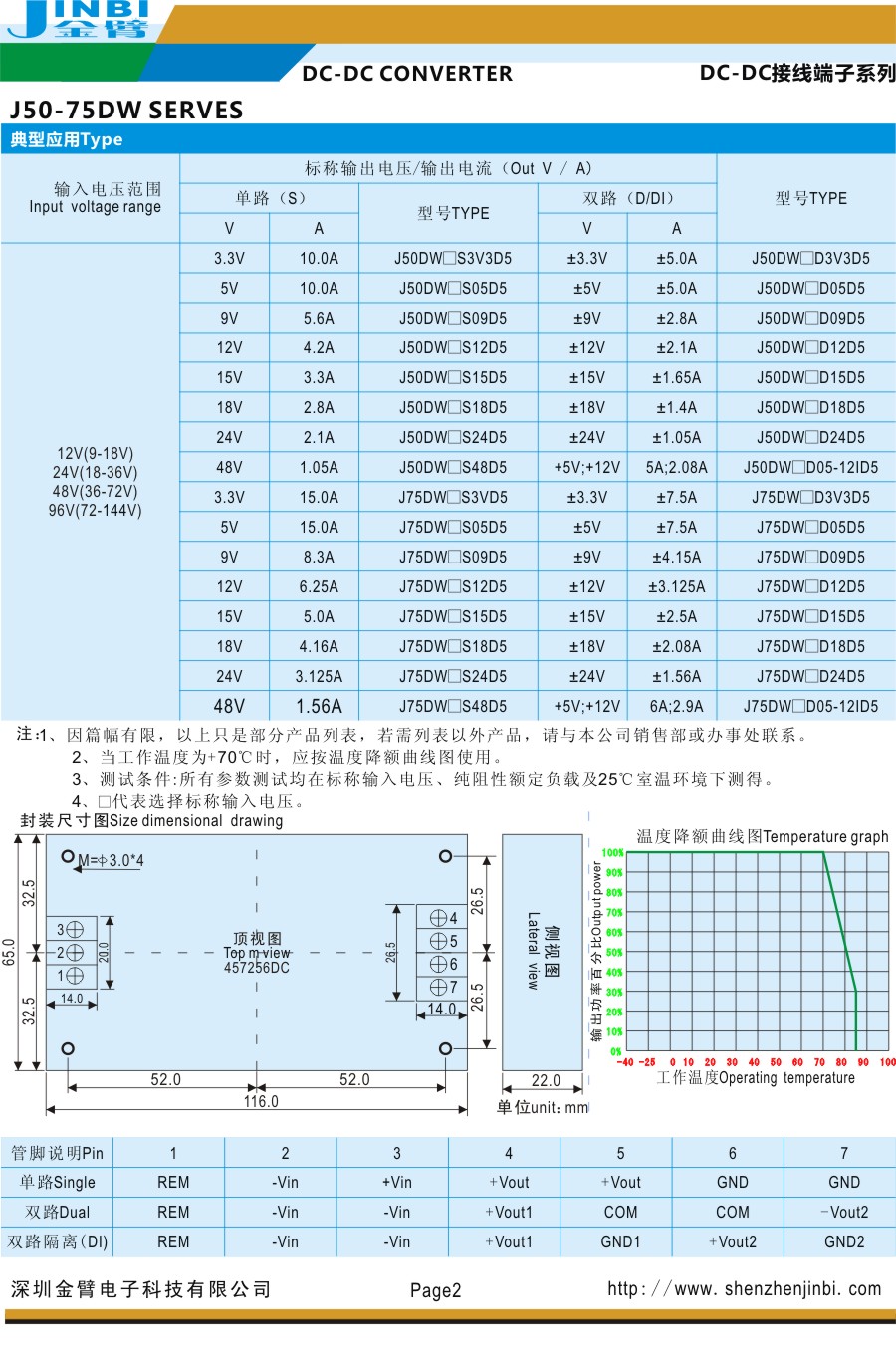

⊙封装尺寸Size dimensional：116.0x65.0x22.0mm
