产品中心 Products

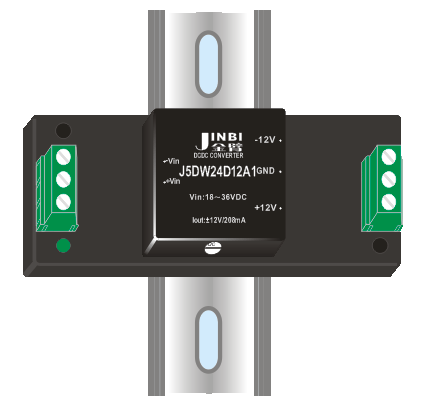

J3-6DW_300122C10
J3-6DW_300122C10
- 产品概述
- 规格参数
- 资料下载

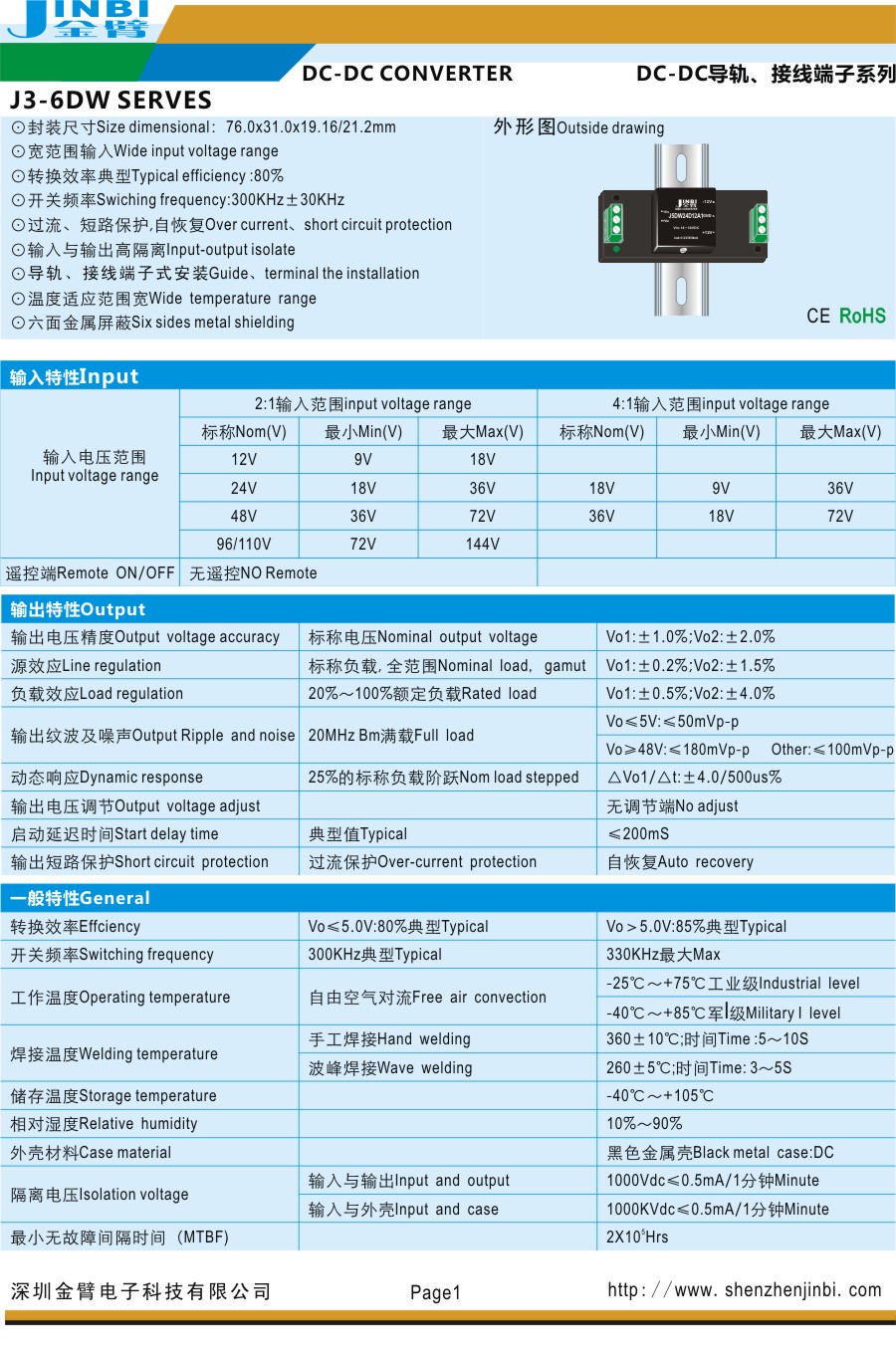

⊙宽范围输入Wide input voltage range
⊙转换效率典型Typical efficiency :80%
⊙开关频率Swiching frequency:300KHz±30KHz
⊙过流、短路保护,自恢复Over current、short circuit protection
⊙输入与输出高隔离Input-output isolate
⊙导轨、接线端子式安装Guide、terminal the installation
⊙温度适应范围宽Wide temperature range
⊙六面金属屏蔽Six sides metal shielding
⊙转换效率典型Typical efficiency :80%
⊙开关频率Swiching frequency:300KHz±30KHz
⊙过流、短路保护,自恢复Over current、short circuit protection
⊙输入与输出高隔离Input-output isolate
⊙导轨、接线端子式安装Guide、terminal the installation
⊙温度适应范围宽Wide temperature range
⊙六面金属屏蔽Six sides metal shielding

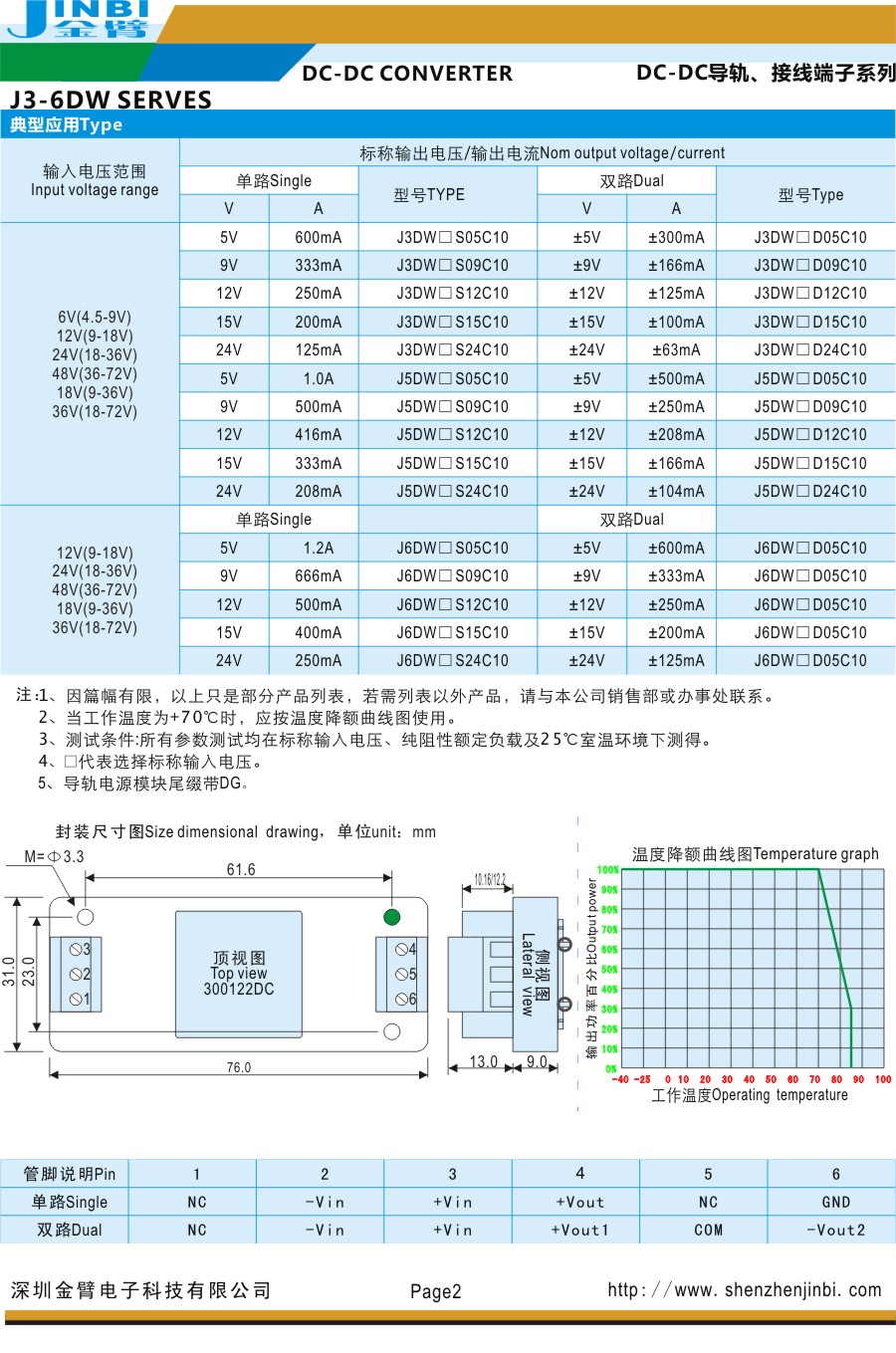

⊙封装尺寸Size dimensional：76.0x31.0x19.16/21.2mm
- 产品咨询
