产品中心 Products

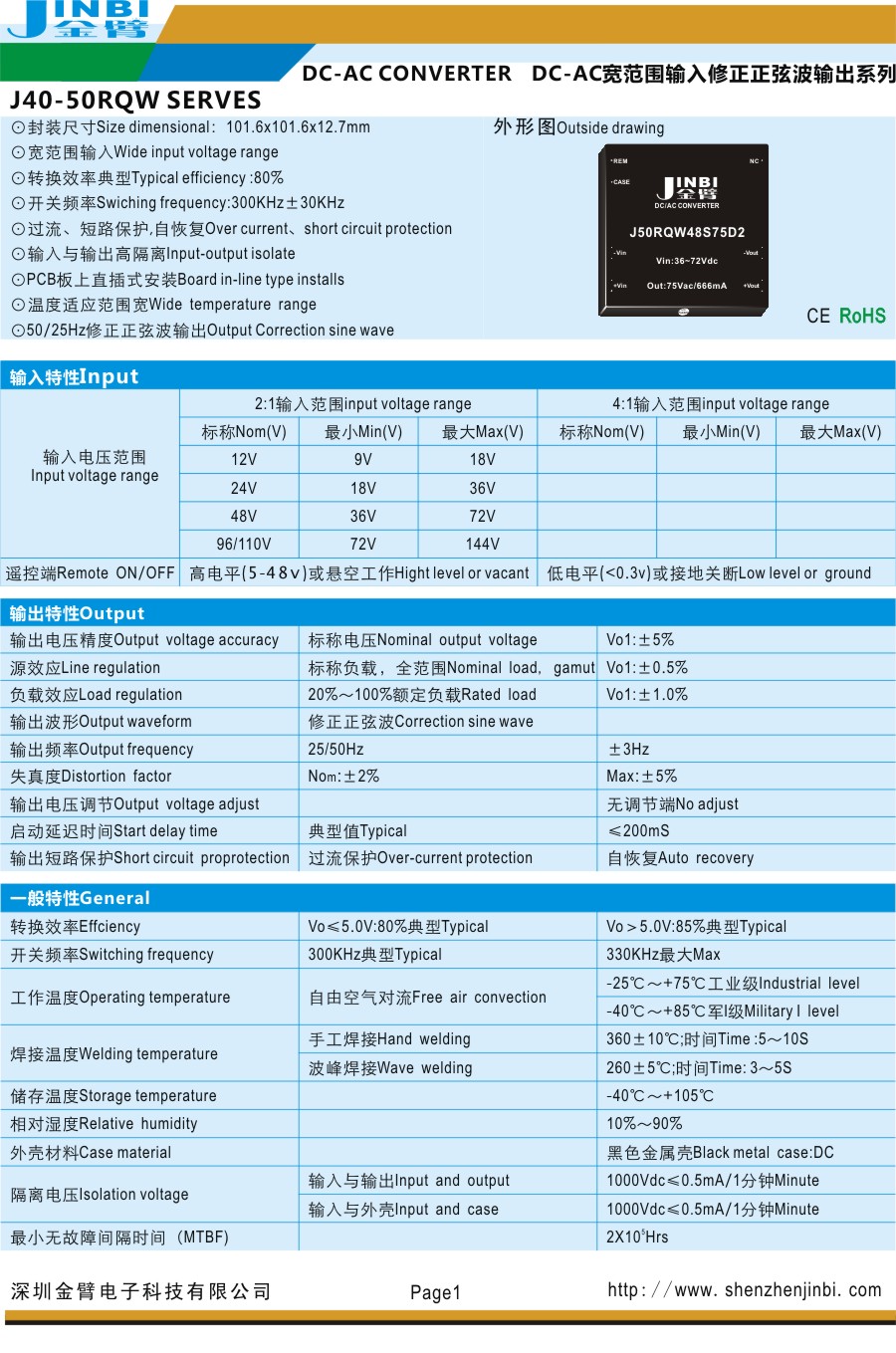

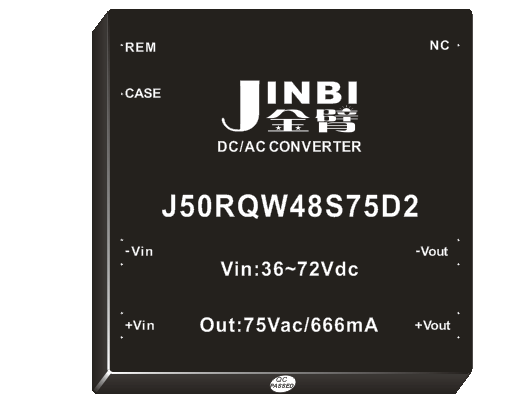

J40-50RQW_400400D2
J40-50RQW_400400D2
- 产品概述
- 规格参数
- 资料下载
⊙宽范围输入Wide input voltage range
⊙转换效率典型Typical efficiency :80%
⊙开关频率Swiching frequency:300KHz±30KHz
⊙过流、短路保护,自恢复Over current、short circuit protection
⊙输入与输出高隔离Input-output isolate
⊙PCB板上直插式安装Board in-line type installs
⊙温度适应范围宽Wide temperature range
⊙50/25Hz修正正弦波输出Output Correction sine wave
⊙转换效率典型Typical efficiency :80%
⊙开关频率Swiching frequency:300KHz±30KHz
⊙过流、短路保护,自恢复Over current、short circuit protection
⊙输入与输出高隔离Input-output isolate
⊙PCB板上直插式安装Board in-line type installs
⊙温度适应范围宽Wide temperature range
⊙50/25Hz修正正弦波输出Output Correction sine wave

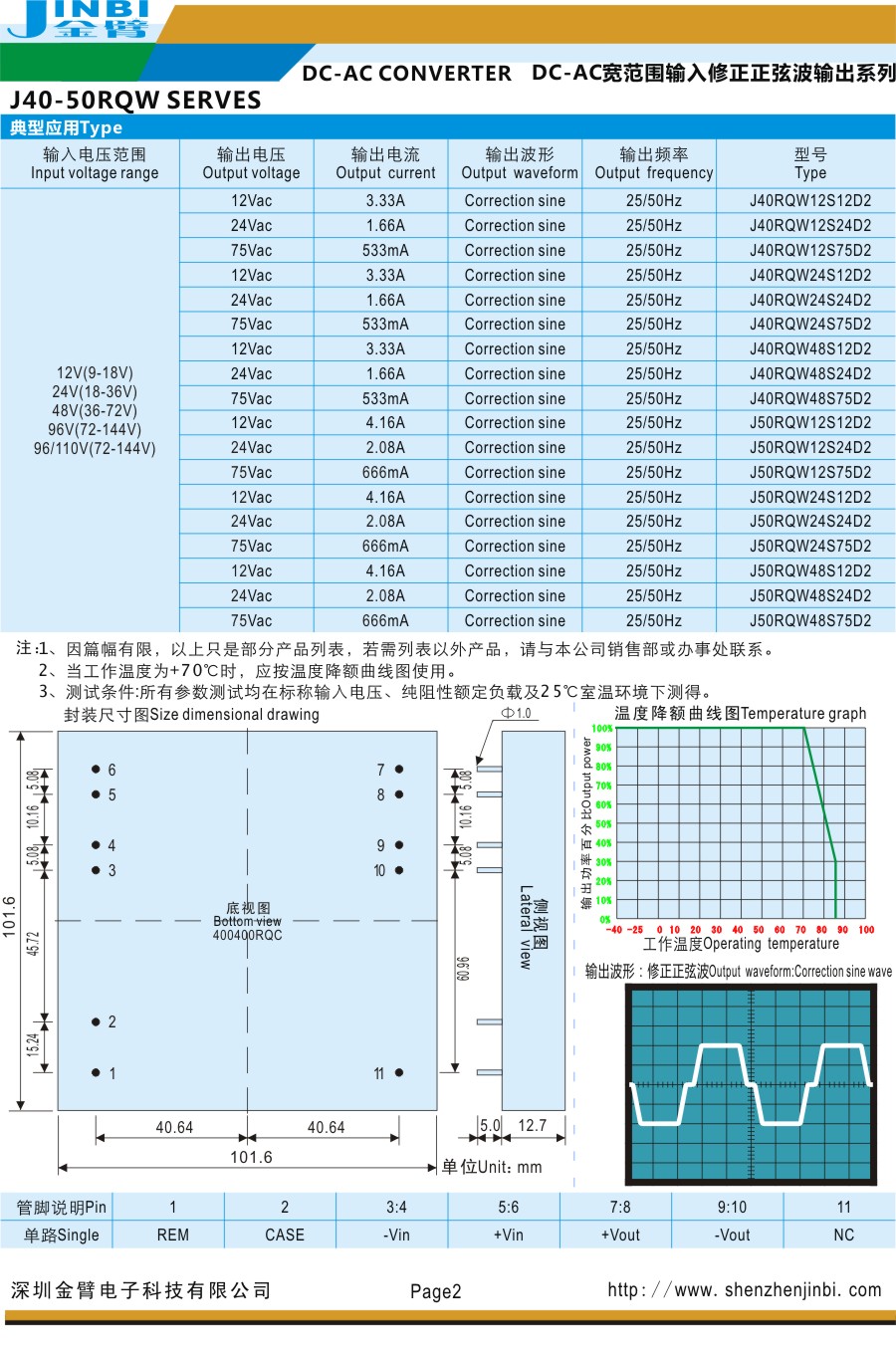

⊙封装尺寸Size dimensional：101.6x101.6x12.7mm
