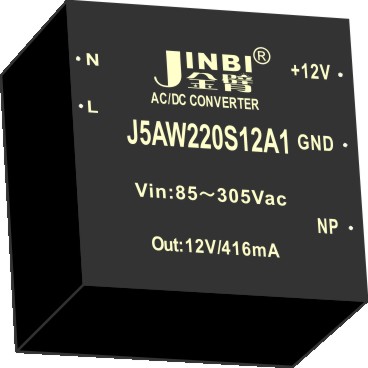

J3-5AW_100100A1
J3-5AW_100100A1
- 产品概述
- 规格参数
- 资料下载

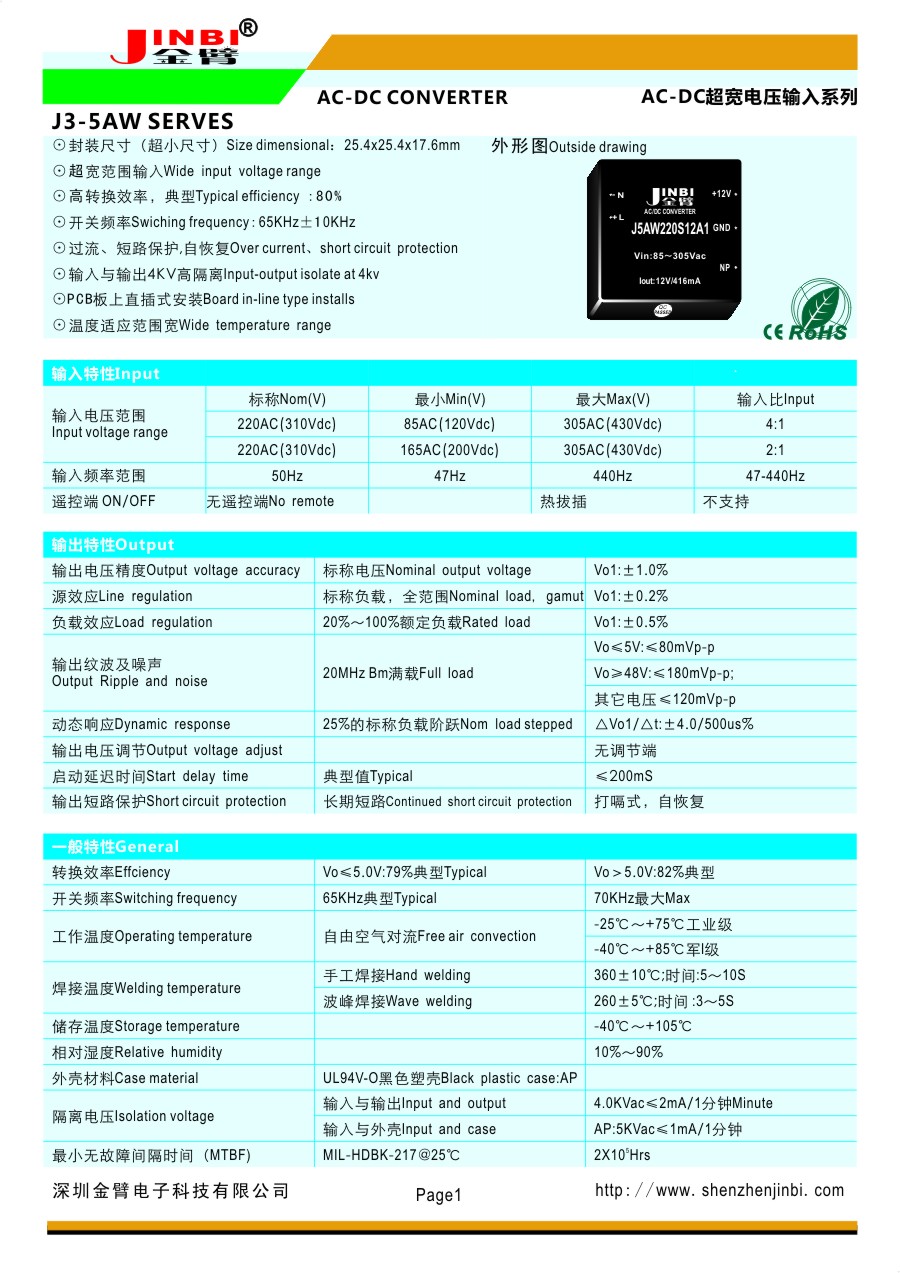

⊙封装尺寸（超小尺寸）Size dimensional：25.4x25.4x17.6mm
⊙超宽范围输入Wide input voltage range
⊙高转换效率，典型Typical efficiency :80%
⊙开关频率Swiching frequency:65KHz±10KHz
⊙过流、短路保护,自恢复Over current、short circuit protection
⊙输入与输出4KV高隔离Input-output isolate at 4kv
⊙PCB板上直插式安装Board in-line type installs
⊙温度适应范围宽Wide temperature range
⊙超宽范围输入Wide input voltage range
⊙高转换效率，典型Typical efficiency :80%
⊙开关频率Swiching frequency:65KHz±10KHz
⊙过流、短路保护,自恢复Over current、short circuit protection
⊙输入与输出4KV高隔离Input-output isolate at 4kv
⊙PCB板上直插式安装Board in-line type installs
⊙温度适应范围宽Wide temperature range
⊙封装尺寸Size ：25.4x25.4x17.6mm
